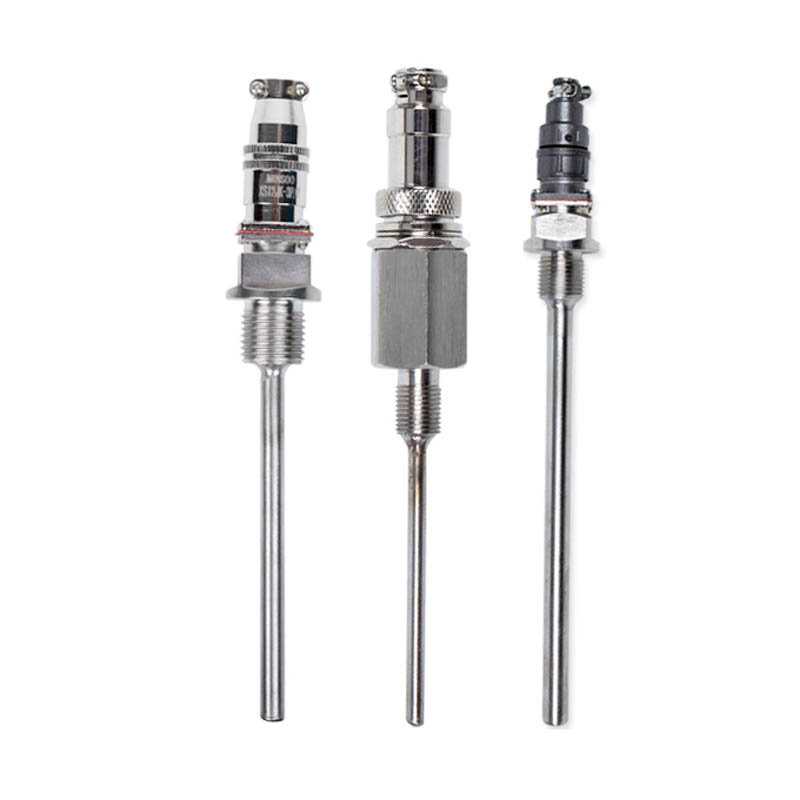

Aviation socket type pt100 RTD WZP-270
Aviation socket type pt100 RTD WZP-270adopts connector form, which is easy to install. It is suitab
Description
Aviation socket type pt100 RTD WZP-270 adopts connector form, which is easy to install. It is suitable for measuring the temperature of liquid, gas and solid surface in the range of -200-+450℃.
Aviation socket type pt100 RTD WZP-270 are produced according to my country's new standard JB/T8622-1997. Its working principle is that under the action of temperature, the resistance value of platinum resistance wire changes with the change of temperature. The relationship between temperature and resistance is close to a linear relationship, the deviation is very small and grows with time, the deviation is ignored, and the electrical performance is stable. This series of products have the advantages of small structure, wide application range, good reliability, short thermal response time, etc., and can form a series of products with multiple varieties and specifications for petroleum, chemical industry, power station, metallurgy, light industry, food, textile, medical and health , Scientific research, agriculture and machinery industries to provide a new generation of high-quality products.
Aviation socket type pt100 RTD WZP-270 main technical parameters
Accuracy grade: A, B
Protection level: IP65
Nominal pressure: normal pressure
Aviation socket type pt100 RTD WZP-270 are produced according to my country's new standard JB/T8622-1997. Its working principle is that under the action of temperature, the resistance value of platinum resistance wire changes with the change of temperature. The relationship between temperature and resistance is close to a linear relationship, the deviation is very small and grows with time, the deviation is ignored, and the electrical performance is stable. This series of products have the advantages of small structure, wide application range, good reliability, short thermal response time, etc., and can form a series of products with multiple varieties and specifications for petroleum, chemical industry, power station, metallurgy, light industry, food, textile, medical and health , Scientific research, agriculture and machinery industries to provide a new generation of high-quality products.
Aviation socket type pt100 RTD WZP-270 main technical parameters
Accuracy grade: A, B
Protection level: IP65
Nominal pressure: normal pressure
Aviation socket type pt100 RTD WZP-270 Models and Specifications
model | Graduation mark | Temperature measurement range ℃ | Thermal response time | Protective tube material | Specifications |
WZP-260 | Pt100 | 0-100 | ＜ 30S | 1Cr18Ni9Ti | 100;150;200; ;250;300mm |
WZP 2 -260 | ＜ 45S | ||||
WZP-267M | Pt100 | -50-+150 | ＜ 30S | ||
WZP-269 | Pt100 | -200-+300 | ＜ 30S | 75;100;150; 200 ;250mm | |
WZP 2 -269 | ＜ 45S | ||||
WZC-269 | Cu50 | -50-+100 | ＜ 120S | ||
WZP-270 | Pt100 | -200-+420 | ＜ 15S | 50;75;100 ;150;200mm | |
WZC-270 | Cu50 | -50-+150 | ＜ 45S | ||
WZP-280 | Pt100 | -200-+300 | ＜ 30S |
